6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

Brand Name : UNIMETRO

Model Number : UNIZOOM65

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 50 per month

Delivery Time : 5 work days

Packaging Details : Paper box

Price : Discussible

Optical Magnification : 0.7X-4.5X

Working distance : 90+-2mm

Max compatible sensor : 2/3"

Adapter : Type C

Contact Now

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

Description

Continuous Zooming Lens series 6.5X

● Combination of high resolution and general high magnification.

● General continuous zooming lens, widely used in different industries application. And it is the most flexible and high performance lens for vision measurement machines.

● Co-axial Motorized lens application on the CNC vision measurement machine

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

Parameters

Item

6.5X continuous zooming lens series
Optical Magnification

0.7X-4.5X
Working distance

90+-2mm
Optical Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X
Depth of field (mm)

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

0.1
N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

0.085
F.No.

11.6

12.1

12.5

14.2

17.8

17.6

20.5

23.5

26.5
Resolution (um)

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

3.95
TV deformation

0.019%

0.035%

0.002%

0.003%

0.004%

0.001%

0.001%

0.002%

0.002%
Vision area (mm)Diagonal*Horizontal*Vertical

2/3"

15.71*12.57 *9.43

11*8.8 *6.6

7.33*5.87 *4.4

5.5*4.4 *3.3

4.4*3.52 *2.64

3.67*2.93 *2.2

3.14*2.51 *1.89

2.75*2.2 *1.65

2.44*1.96 *1.47
1/2"

11.443*9.14 *6.86

8*6.4 *4.8

5.33*4.27 *3.2

4*3.2 *2.4

3.2*2.56 *1.92

2.67*2.13 *1.6

2.29*1.83 *1.37

2*1.6 *1.2

1.78*1.42 *1.07
1/3"

8.57*6.86 *5.14

6*4.8 *3.6

4*3.2 *2.4

3*2.4 *1.8

2.4*1.92 *1.44

2*1.6 *1.2

1.71*1.37 *1.03

1.5*1.2 *0.9

1.33*1.07 *0.80
Max compatible sensor

2/3"
Adapter

Type C

Components

Supporting lens tube

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

Supporting Manual zoom lens

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

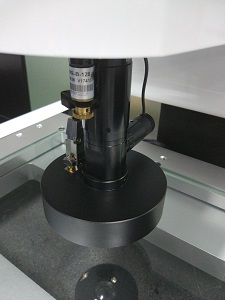

Supporting Motorized zoom lens

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

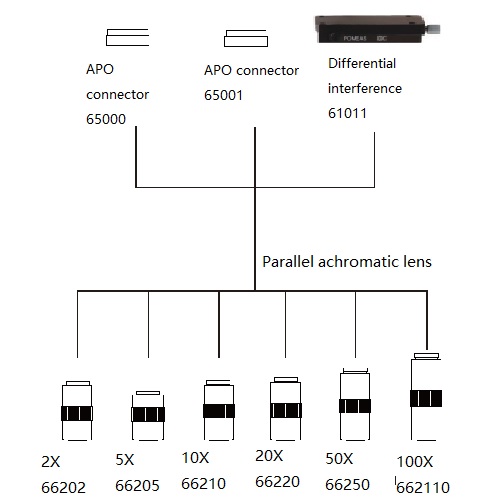

Differential interference components

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

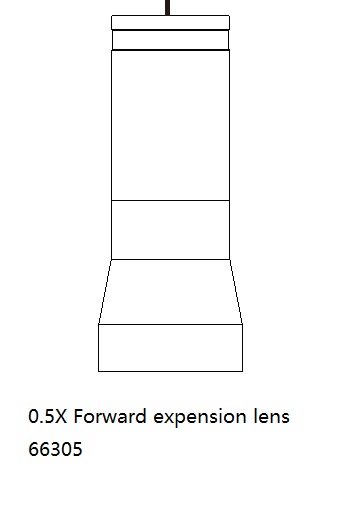

Auxiliary lens

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

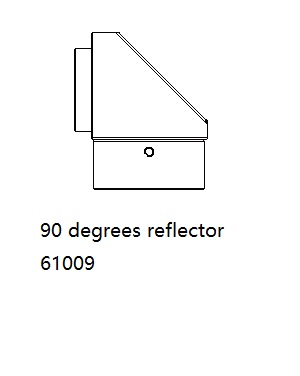

Other lens

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

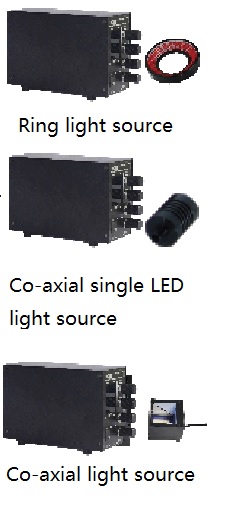

Illumination

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine 6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

Company Information
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine

Our Client&Agent

6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine
FAQ
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine Q1: Are you a factory or trading company ?
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine A1: We are a factory and giving you the quickest reply in 24 hours.
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine Q2: What's your company mainly in?
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine Q3: How to Choose the Appropriate Specification?
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine Q4: Do you accept customized service?
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine Q5: What is your warranty period?
6.5 X Continuous Zooming Industrial Lens For Vision Measurement Machine A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality.
